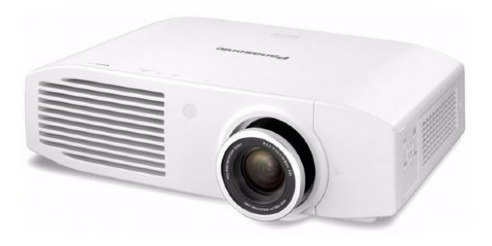

Proyector Panasonic Pt-ah1000e Full Hd 2.800 Lúmenes.

Descripción

SONIDO PAUL
Características

Power supply 100?240 V AC, 50/60 Hz
Power consumption 350 W (0.08 W in standby mode)
LCD*2 panel Panel size 18.7 mm (0.74 in) diagonal (16:9 aspect ratio)
Display method Transparent LCD panel (× 3, R/G/B)
Drive method Active matrix
Pixels 2,073,600 (1,920 × 1,080) × 3, total of 6,220,800 pixels
Lamp*3 280 W UHM lamp
Lens Manual zoom (1.33?2.69:1), manual focus lenses, F 2.0?3.4, f 21.5?43.0 mm
Projection size (diagonal) 1.02?7.62 m (40?300 inches)
Colors Full color (1,073,741,824 colors)
Brightness*4 2,800 lumens*5
Center-to-corner uniformity ratio*4 85%
Contrast ratio*4 50,000:1*6 (full on/full off)
Resolution 1,920 × 1,080 pixels
Scanning frequency RGB fH: 15 kHz?74 kHz, fV: 24 Hz?85 Hz,
dot clock: 154 MHz or lower
YPBPR (YCBCR) 525i (480i), 625i (576i), 525p (480p), 625p (576p), 750 (720)/60p, 750 (720)/50p,
1125 (1080)/60i, 1125 (1080)/50i, 1125 (1080)/24p, 1125 (1080)/60p, 1125 (1080)/50p
Video/S-Video fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60]
fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
Optical axis shift*7 Vertical: ±65%, horizontal: ±26%
Keystone correction range Vertical: approx. ±30°
Installation Ceiling/desk, front/rear (menu selection)
On-screen menu languages English, French, German, Spanish, Italian, Chinese, Korean, Russian, Swedish,
Danish, Norwegian, Polish, Czech, Hungarian, Portuguese, Thai, Japanese

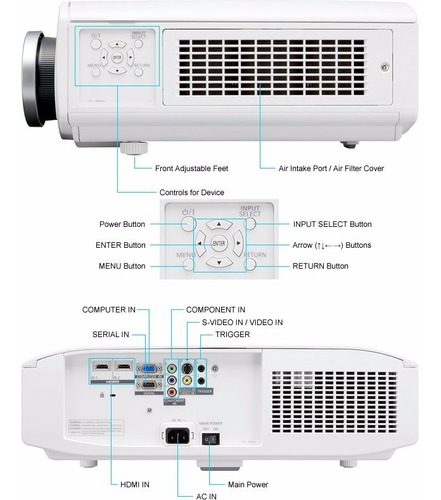

Terminals HDMI IN HDMI connector × 2, HDMI? (Deep Color, x.v.Color?*8, CEC*9 ),
HDCP compliant, supports HDAVI Control Version 5
COMPUTER (RGB) IN D-sub HD 15-pin (female) × 1 (RGB/YPBPR/YCBCR × 1)
COMPONENT IN RCA pin × 3 (YPBPR/YCBCR)
TRIGGER IN/OUT M3 × 2, 12 V, max. 100 mA
(input/output selectable using on-screen menu)
VIDEO IN RCA pin × 1
S-VIDEO IN Mini DIN 4-pin × 1
SERIAL IN D-sub 9-pin × 1 for external control (RS-232C compliant)
Power cord length 3.0 m (9 ft 10 in)
Cabinet materials Molded plastic (PC+ABS)
Dimensions (W × H × D) 470 mm × 151 mm × 380 mm*10 (18-17/32½ × 5-15/16½ × 14-31/32½ )*10
Weight*11 Approx. 8.6 kg (19.0 lbs)
Operation noise*4 29 dB (lamp power: ECO)
Operating temperature 0°?40°C (32°?104°F)*12
Operating humidly 20%?80% (no condensation)
Remote control unit Power supply 3 V DC (AA/R6 type battery × 2)
Operation range*13 Approx. 7 m (23 ft) when operated from directly in front of the signal receptor
Dimensions
(W × H × D) 48 × 138 × 28 mm
(1-7/8½ × 5-7/16½ × 1-3/32½)
Weight Approx. 125 g (4.4 oz) (including batteries)
Supplied accessories Power cord (× 1) (× 2 for PT-AR100EA)
Wireless remote control unit (× 1)
Batteries for remote control (AA/R6 type × 2)
Lens cover (× 1)
Optional accessories Replacement
lamp unit ET-LAA110
Ceiling mount bracket ET-PKA110H (for high ceilings)
ET-PKA110S (for low ceilings)
Documentos

Documento Acrobat Reader PT-AH1000 Gatalogo (0,85 Mb)
