Cantidad de canales: 2
Tipo de preamplificador: linea
Instrumentos compatibles: Tocadisco
Con USB: No

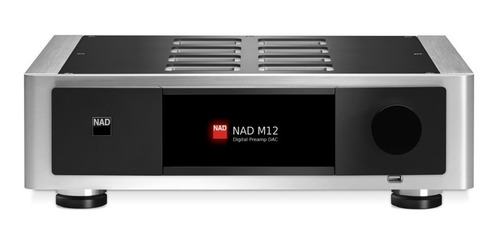

Preamplificador Estereo NAD M12 220V
Preamplificador Digital estereofónico balanceado.
Direct Digital 35bit, WIFI,Ethernet, Bluetooth aptX, HD Streaming desde disco NAS, TuneIn radio.
Entradas digitales: 2 x USB , 2 x F.Optica, 2 x XLR, 2 x RCA.
Entrada analógicas: 1 x Phono MM/MC, 1 x RCA, 1 x XLR.
Salidas preamplificadas: 1 x RCA,1 x XLR, 2 x Subwoofer.
Sistema modular MDC.
Mando a distancia.
Dimensiones: 435x133x383 mm (An x AI x P).
Peso: 9 kg
NAD DirectDigital™ Innovation DirectDigital™ amplification offers the highest level of
performance. The 35-bit data path with 24-bit coefficients and 62-bit accumulation, and dithered truncation back to 35-bits after DSP functions guarantee the overall 24-bit accuracy. With this degree of resolution, all preamp functions can be accomplished with a new level of precision, and all in the digital domain. This eliminates the noise and distortion prone to analogue circuits. Because of the super high resolution, even 24-bit files are processed without truncation or loss of information.
Standard inputs include AES/EBU, Asynchronous 24/192 USB, coaxial and optical digital inputs and balanced and single-ended line level inputs including a high performance MC/MM phono stage. Rounding out the picture, a pure Class-A buffer using the latest generation of Super OP Amps provide low impedance balanced and single-ended connections to power amplifiers or active loudspeakers. A remote controls all functions and IR repeaters, 12V triggers, and a serial port to make integration with advanced control systems a snap.
Fine Tune Your System
Because of the massive computing power and high-resolution signal path, some interesting features have also been incorporated to further perfect the listening experience. Want to add a subwoofer to your system? The M12 includes a second order high pass and low pass crossover with selectable frequency.
You can even select different frequency knees for each filter. This level of flexibility and precision is made possible by our highly perfected DirectDigital architecture.
Future Forward MDC
One of NAD’s most innovative technological advancements— Modular Design Construction (MDC)—does away with obsolescence by providing a simple upgrade path to add future features and functionality. M12 owners can add an optional DD
HDM-1 HDMI Module with 3 inputs and 1 output (3D video passthrough) and/or a network audio module, DD BluOS, with music management software that is controlled with an iOS or Android device. The DD BluOS MDC Module allows streaming of a variety of music services, HD streaming from a NAS device, and TuneIn radio; plus it gives you full control of your music library. Integrated WiFi/Ethernet and aptX Bluetooth™ connections are also offered with the DD BluOS Module.
Total Width 435mm Total Depth 383mm
DIGITAL INPUT (COAXIAL, OPTICAL, USB) M12
Rated Distortion (THD+N with AES 17 filter) <0.0005% (0dBFS)
IMD Distortion 0.0001%
Input Impedance 75 ohms (coaxial)
110 ohms (AES/EBU)
Sample Rate 32kHz to 192kHz (USB and digital S/PDIF)
Frequency Response ±0.5dB (ref. 20Hz-22kHz @ sample rate)
Channel Separation >-115dB (ref. 0dBFS Volume -1dB)
Signal / Noise Ratio >-125dB (ref. 0dBFS 2V out)
Output Level 2V (ref. input 0dBFS)
XLR - AES/EBU
S/PDIF Coaxial x 2
Optical x 2
USB Class 2 Audio: asynchronous 24/192 support
DD AP-1 Analogue Phono Module
Trigger In 12V ±20%
Trigger Out 12V ±20%
Idle Power 26W
Standby Power <0.5W
Unit Dimensions (WxHxD) - Gross* 435 x 133 x 383mm
17 1/8 x 5 1/4 x 15 1/8 inches**
Net Weight 8.1kg (17.9lb)
Shipping Weight 14.5kg (32.0lb)
