Cantidad de efectos: 7
Tipos de efectos: video
Cantidad de entradas: 12
Cantidad de salidas: 7
Compatibilidad USB: Sí
Procesador A/V Nad M17 V2 7.1 canales 220v dolby, master, dts
Importador Directo, 220v.
Procesador de A/V balanceado de 7.1 canales.
Sistema modular MDC.
Circuiteria de salida Power Drive y sistema de proteccion Soft clipping exclusiva de NAD.
Descodifica Dolby Digital, Dolby Digital EX, Dolby Prologic 2x,Dolby TRUE HD,DTS HD Master Audio, DTS,DTS ES,DTS 96/24, DTS Neo…
D/A de alta calidad.Sintonizador AM/FM con funciones RDS y 40 presintonias.
6 x entradas HDMI.
2 x salida HDMI.
Mando a distancia.
Dimensiones: 435x156x386 mm (An x Al x P).
Peso: 11 Kg
M17 Surround Sound AV Preamplifier
Designed for high performance home theater applications, the M17 is a no-compromise preamp design for the best possible surround sound experience. Dolby TrueHD, DTS Master Audio and NAD’s innovative EARSTM (stereo-to-surround) circuits are just some of the features that deliver lifelike home theater performances. Like all professional recording studios and sound stages, the M17 offers fully balanced audio outputs with separate linear supply for all seven channels. M17 offers a completely flexible setup and ease of use with customizable presets. Like its sibling the M12, M17 also features MDC to keep it from premature obsolescence and includes six HDMI Inputs and dual HDMI Outputs with CEC for the primary monitor. Included is a free upgrade to our next generation VM300 MDC Video Module when it becomes available early next year and including a mature implementation of HDMI 2.0 and HDCP 2.2.
Modular Design Construction (MDC)
With MDC all major digital circuits can be upgraded and replaced to keep the M17 forever young and capable. This NAD innovation is a unique architecture that keeps pace with the fast changing world of digital formats by allowing connectivity and feature upgrades as new technology becomes available. Future video formats and surround sound decoders can be easily accommodated with our exclusive MDC, allowing critical digital hardware and software to be upgraded. MDC defies premature obsolescence, so you can keep pace with the latest developments in high performance AV through dealer-installed modules. Your M17 can be upgraded as your needs and tastes develop, and you only need to replace the module you want to upgrade, not the entire AV preamp processor.
Fully Featured Surround
The M17 carries on the enviable task of representing NAD’s finest surround sound performance. It offers full HDMI video switching and surround sound decoding along with 7.1 balanced outputs. Brimming with a full complement of sophisticated features like the high resolution lossless surround formats from Dolby TrueHD and DTS Master Audio decoding, NAD’s own renowned stereo-to-surround EARS (Enhanced Ambient Recovery System) circuit optimized for 7-channel surround, and Audyssey MultEQ setup and room correction, the M17 provides the highest levels of performance. The surround mode of the source material is automatically detected via the digital inputs of the M17, and the most advanced form of decoding, based on your setup, is switched in. Conversion of the encoded digital bitstream is performed with high resolution and extremely linear D/A converters carefully selected for their performance capabilities.
Fully Balanced Audio with Separate Linear Supply
Like all professional recording studios and sound stages, the M17 offers fully balanced audio outputs for all seven channels. Locking connectors and special interface electronics allow long cable runs without noise pickup or signal loss. The silent black background and explosive dynamics afforded by the balanced line stage amplifier adds drama and excitement to your music and movies.

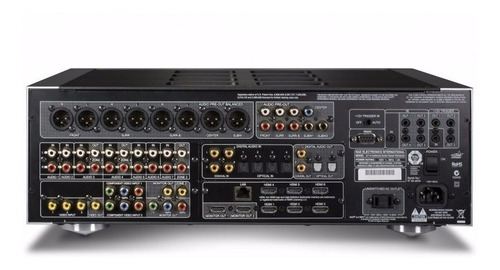

A full suite of video switching caters to all the popular video formats (HDMI, Component Video, S-Video, and Composite Video). Digital inputs and outputs are available in both coaxial and optical formats to make it easy to attach all your digital sources. Digital inputs are converted to analogue for use in Zone 2, and you can choose to convert unused tape outputs for Zone 3 and Zone 4 use with independent source selection and volume control. We have also made it easy to add more speakers for listening to music in additional rooms. IR repeaters, 12V triggers to automatically switch amplifiers on and off, and an RS-232 data port makes it easy to connect to highly advanced automated control systems, such as Savant and Control4. Thoughtful features like discrete On and Off codes, direct access to inputs and FM station presets facilitates the integration of the M17 into elaborate remote control systems.
Customize with AV Presets
The M17’s sleek TFT touch panel display makes setup and control easier than ever before. Unique features like AV presets and a completely flexible input setup allow unprecedented flexibility and ease of use. The
M17 offers five independent AV presets that store speaker level and tone control settings for instant recall, making it easy to custom tailor your system for different types of program material. Encoded surround modes like Dolby Digital and DTS are automatically selected if the program is so encoded. The M17 also remembers your last used settings when switched in and out of Standby mode.
Complete and Compact
The M17 combines all the control and decoding functions in one compact chassis, giving up nothing to the convenience of the receiver, yet by separating the power amp stages gives a big jump in performance and flexibility. Match it with our M27 Seven Channel Power Amplifier with the latest advancement in hybrid digital amplification. The M17 is an excellent example of the NAD Design Team’s expertise in quality in the digital decoding stages, the video processing section, and in the analogue preamp stages for the best overall performance. Along with the new touch screen and ergonomic refinements that simplify operation, the M17 will be the dream command centre of your home cinema.
Total Width 435mm
Total Depth 386mm
HDMI Up to 1080p
Optical 3 Vpp
Coaxial 0.5 Vpp
Ethernet RJ45 10/100 Ethernet Tx
LINE LEVEL INPUT
Input Impedance (R and C) 56kO + 220pF
Input Sensitivity 40mV (ref. 500mV out)
Maximum Input Signal >8Vrms
Signal/Noise Ratio, A-weighted >90dB (ref. 500mV in, 500mV out, volume set to unity gain)
>80dB (ref. 2V out, volume maximum)
Channel Separation >70dB (ref. 1kHz / 10kHz)
Frequency Response ±0.3dB (ref. 20Hz - 20kHz, Tone Active)
±0.3dB (ref. 20Hz - 20kHz, Tone Defeat)
Frequency Response (subwoofer out) 10 - 200Hz (ref. -3dB)
Maximum output level >8Vrms into 600O
THD (CCIF IMD, DIM 100) <0.005% (ref. 20Hz - 20kHz, 2V out)
Tone Controls Treble
±10dB at 10kHz (ref. 2V in, 2V out)
±10dB at 100kHz (ref. 2V in, 2V out)
Standby power <0.5W
Unit Dimension (WxHxD) - Gross* 435 x 156 x 386mm
17 1/8 x 6 3/16 x 15 1/4 inches**
Net weight 10.9kg (24lb)
Shipping weight 17.5kg (38.6lb
